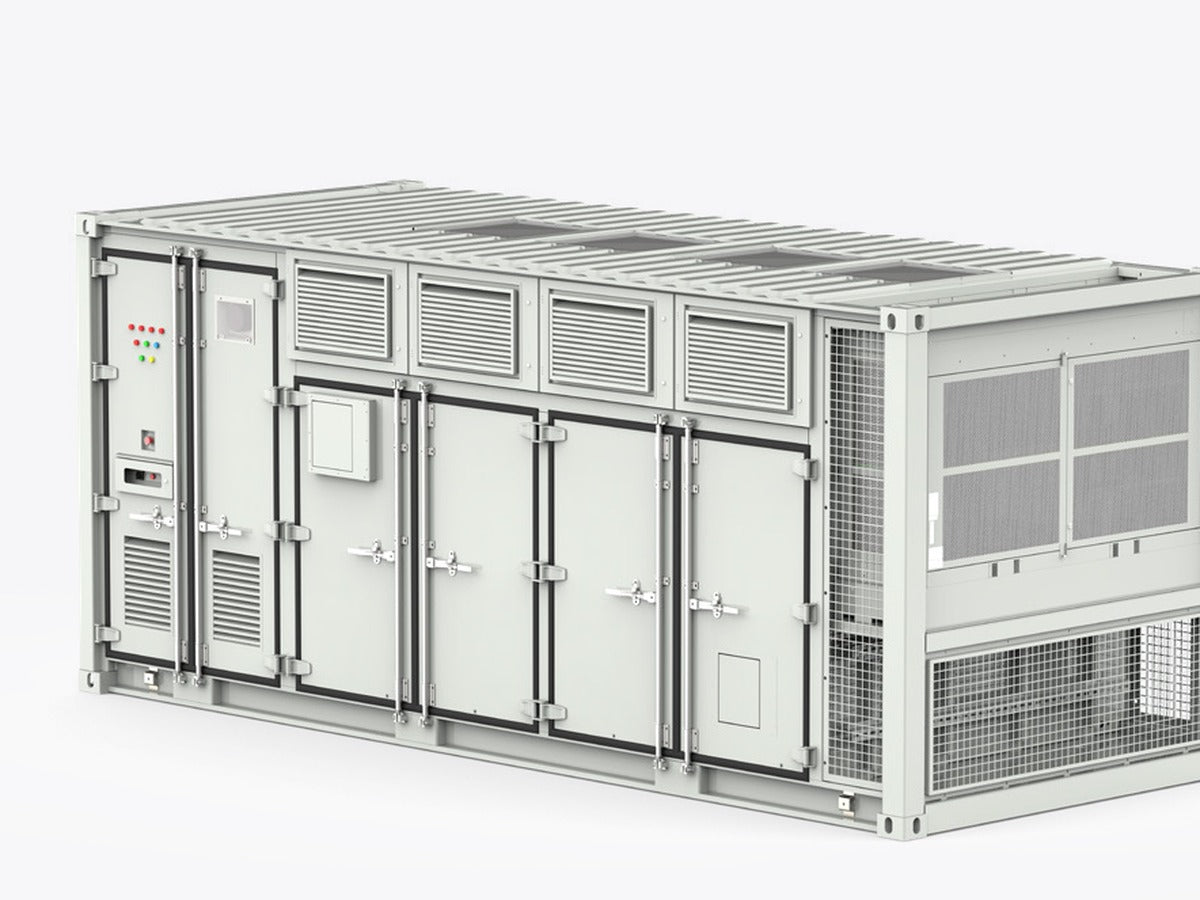

SMRLB Container BESS — 1 MW / 2.036 MWh

1 MW / 2 MWh All-in-One Container

Turnkey 1 MW containerised system with Tier-1 LFP batteries in IP67 enclosures and four-level protection.

• Tier-1 LFP cells, IP67 battery enclosures
• Protection chain: monitoring, early warning, alarm, intervention
• Dimensions 6058 x 2438 x 2591 mm, approx. 26.8 t

Technical specifications

• Configuration: 1 MW / approx. 2 MWh
• AC power: 1000 kW
• Battery capacity: approx. 2 MWh
• Rated AC voltage: 400 V (+/-15 percent)
• DC voltage range: 615-950 V / 650-950 V
• THDi: less than 2 percent at rated power
• Cooling: liquid for battery, air for PCS
